Ford 10.5 Caliper Relocation Bracket

We all know how popular the the 2005-2011 Ford Super Duty axles are for one ton swaps, however, for us rock crawlers it is apparent how vulnerable the rear calipers are on the Ford 10.5.

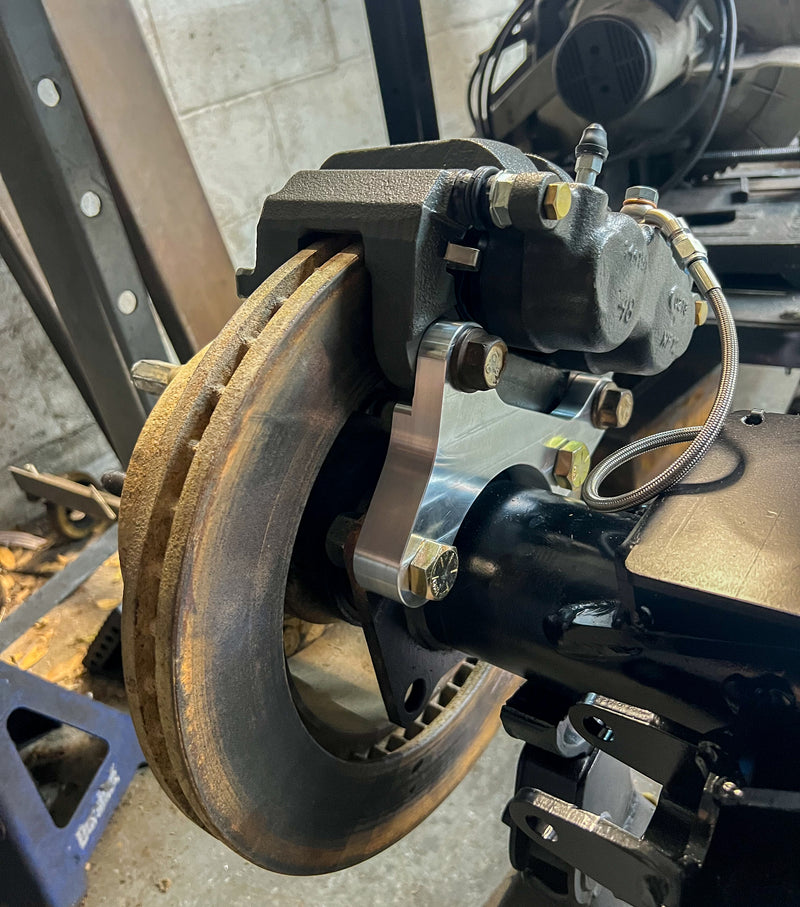

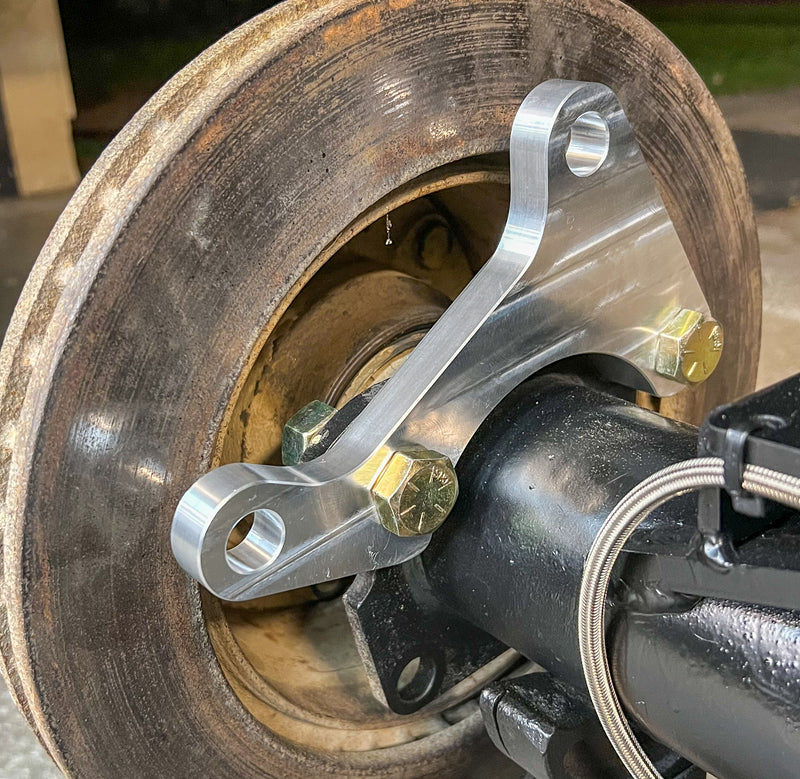

These brackets keep your OEM calipers, but move them up and out of harms way while letting you keep the readily available stock Ford brake parts.

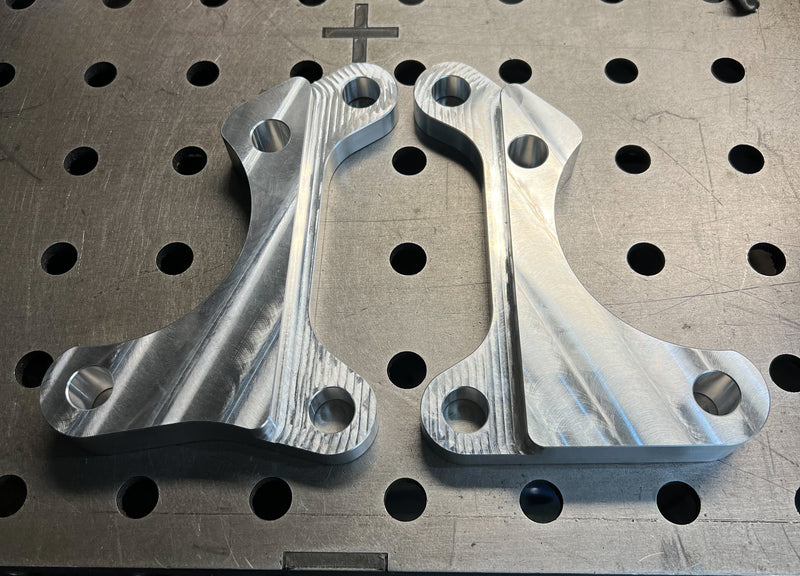

The caliper brackets are made from 6061-T6 aluminum and come with the necessary hardware needed for installation.

Fits:

2005-2011 Ford 10.5 rear axles

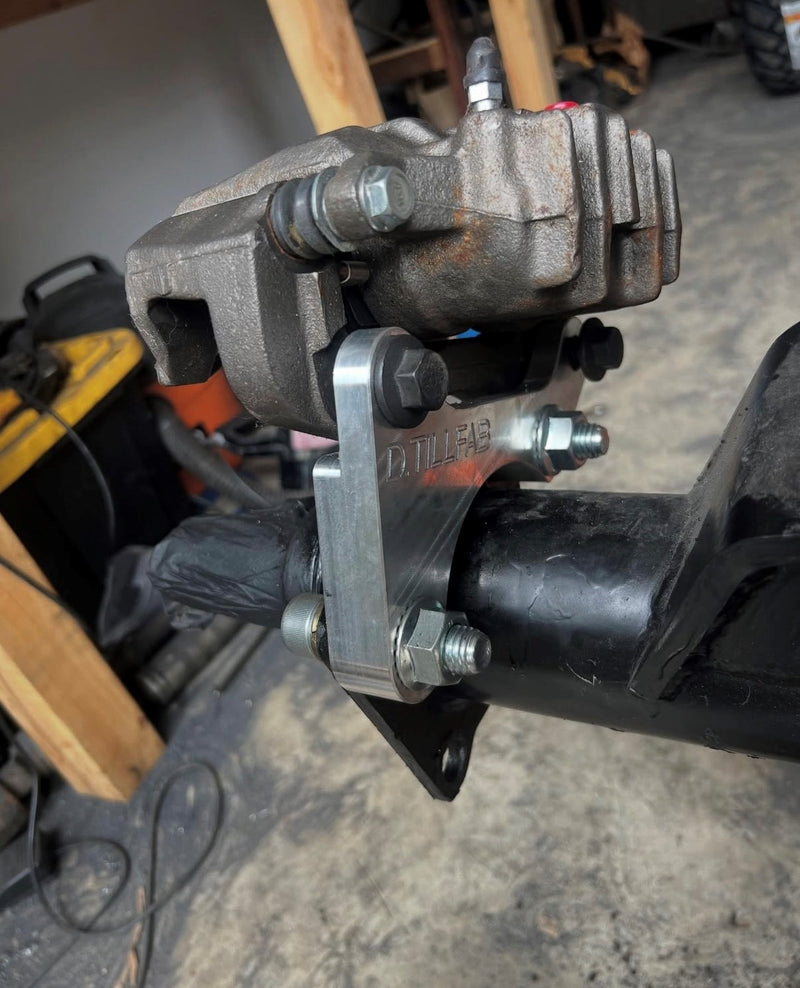

2000-2004 Ford 10.5 rear axles

Please note: If your axle has the brake calipers on opposing sides of the axle, driver side on the front of the axle and passenger on the rear side of the axle the standard brackets will not work. We are working on creating a solution for these units.

Installation notes:

• Driver and passenger calipers are flipped for installation, so the driver caliper will swap to the passenger side and vice versa.
• The OEM parking brake backing plate cannot be used, the hub must be removed to remove the backing plate.
